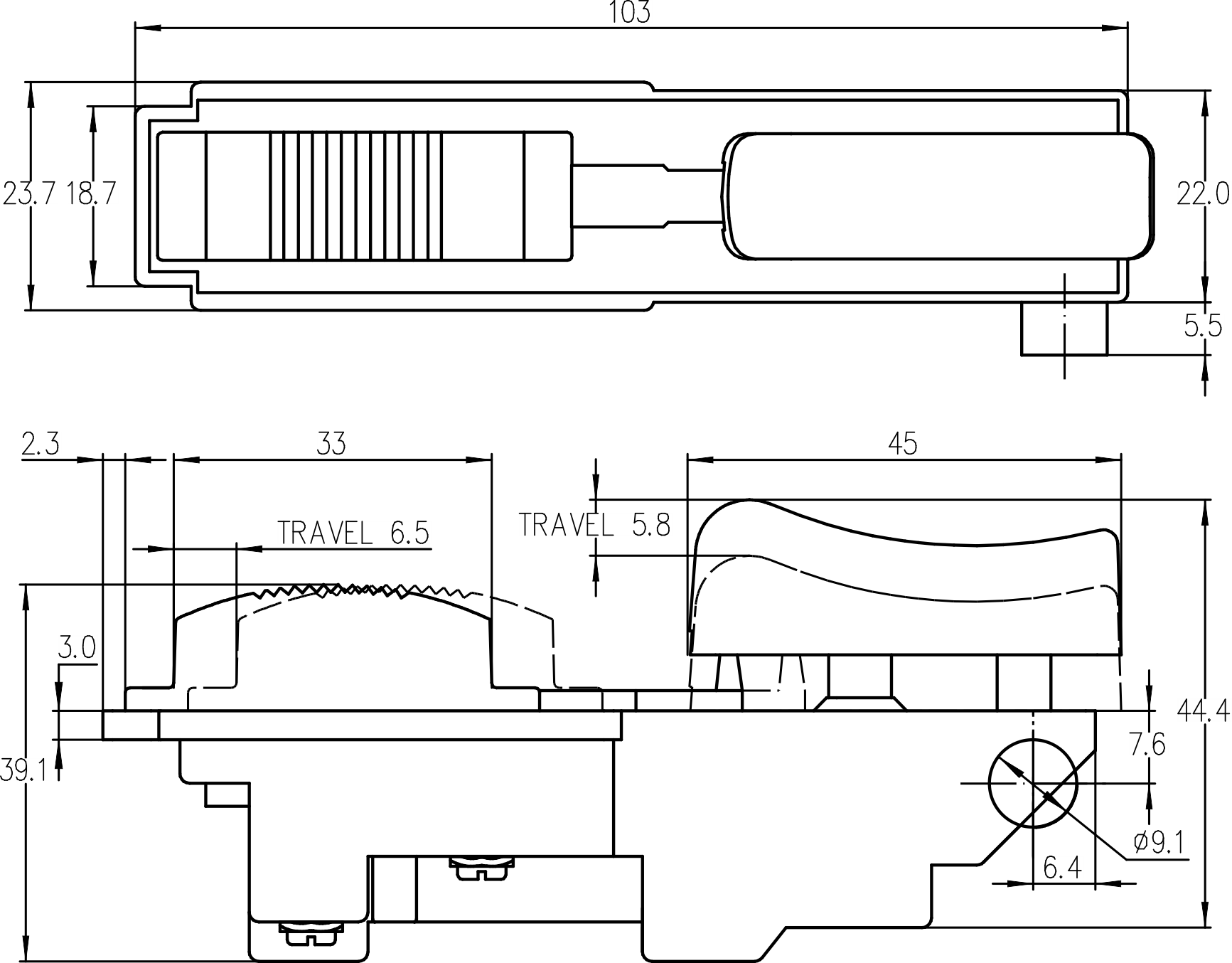

JB04-10/2-A

JB02/JB04舊款電動工具專用開關

JB02/JB04 series Switches Special for Previous Type Power-tools

產品描述Product description

◆JB04系列是一專用的舊款機型開關，集成防塵功能，適用于需要換向功能的手持式電動工具，如：角向電錘、角向電鉆、電動扳手等。
◆JB04 series are one special type switch for previous type power-tools, integrated dustproof, for used in portable power-tools, such as Angle Rotary Hammers, Angle Drill, Electric Impact Wrenches, etc.

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max.I nrush current at 250V60A
→最大沖擊電流 Max. Inrush current at 125V60A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M? Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端/輸出端 Input side/Output side:
→螺釘端子 Screw terminals M3

電氣參數和認證 Electric Rating and Certification
