產品描述Product description
◆JB09-01是一 款通用型的英式插座，集成防塵防水功能，應用于干濕兩用吸塵器及各類臺式電動工具等。
◆JB09-01 is one general european type socket for used in U.K, integrated dustproof and waterproof, for used in Dry and Wet Vacuum Cleaners or Bench top Power-tools, etc.
產品特征Features
◆可選帶以下附件 Optional with the accessories as follows:
→兒童保護滑塊 Children protection slide block
→防水橡膠墊片 Waterproof rubber gasket
技術數據Technical data
→最大電流 Max. current 13A
→防護等級 Protection type IP54
端子類型Terminals
◆輸入端 Input side:
→L, N極：接線柱端子 L, N Pole: Pillar terminals φ=4mm
→接地極：接線柱端子 Earthing Pole: Pillar terminals φ=4mm

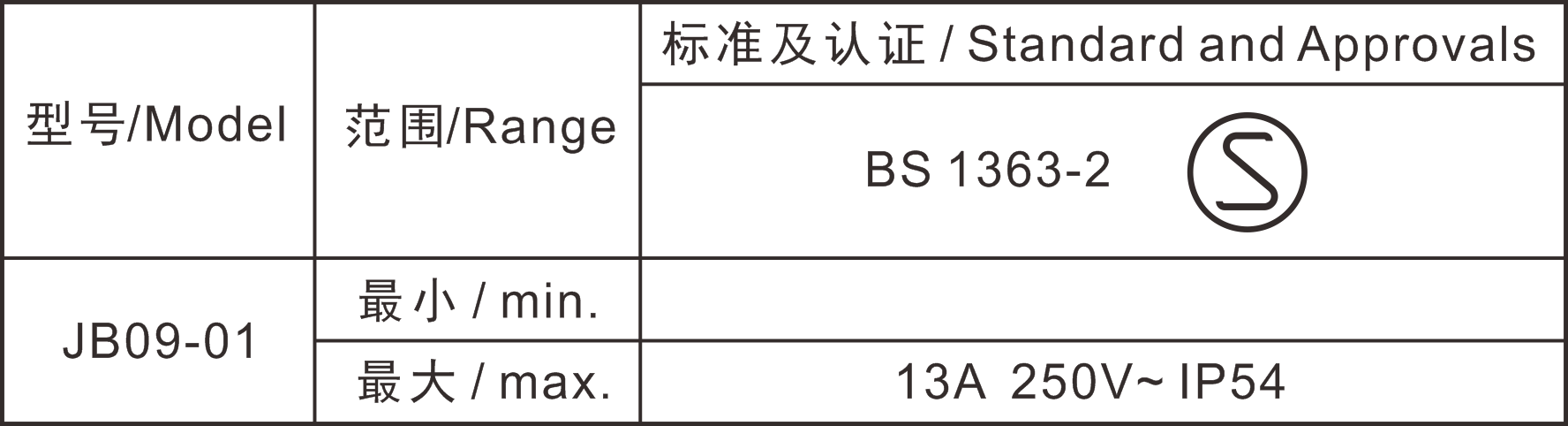

電氣參數和認證 Electric Rating and Certification
