產品描述Product description
◆JB16系列是一款專用型的扳機(電子調速)開關，集成防塵功能，一般應用于大功率的電動工具，如：重型電錘、重型電鎬、型材切割機、180和230角向磨光機、電鏈鋸等。
◆JB16 series are special type (variable speed) trigger switches, integrated dustproof, for used in high rated power-tools such as: Heavy Rotary Hammer, Heavy Electric Demolition Hammers, Cut-off Machines, 180mm and 230mm Angle Grinders, Electric Chian Saws, etc.
產品特征Features
◆可選帶以下功能 Optional with the function as follows:
→全波調速 Full-wave speed control
→半波調速 Half-wave speed control
→通斷功能 On-Off version
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V90A
→最大沖擊電流 Max. Inrush current at 125V108A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II
◆開關內部電子部分在相應使用中一并做過相關測試，本開關適合做二類器具開關使用。
◆The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

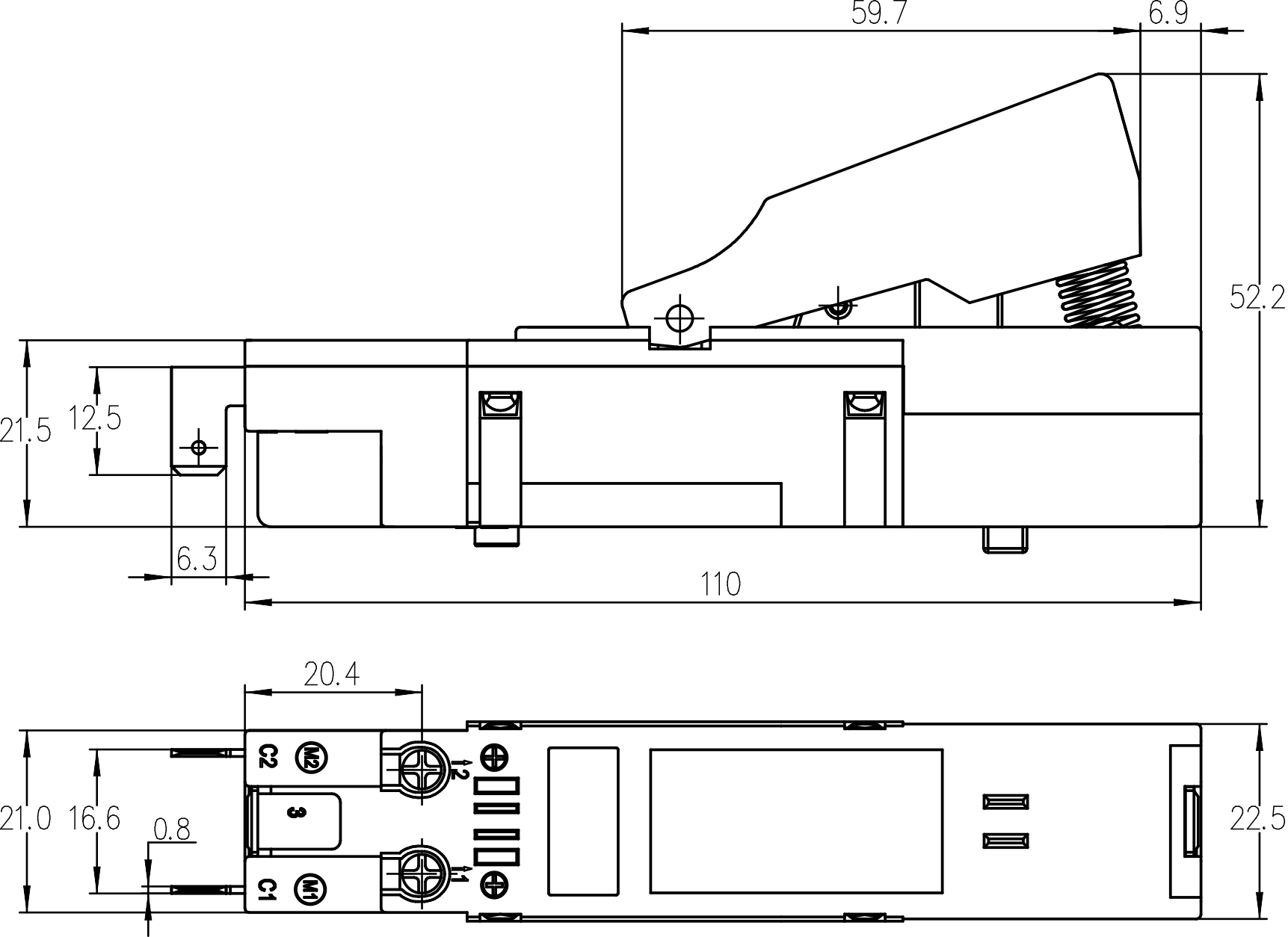

端子類型Terminals
◆輸入端 Input side:
→接線柱端子 Pillar terminals φ=4mm
◆輸出端 Output side:
→插片端子 Plug-in terminal 6.3×0.8mm
→調速功能插片端子 VSC Function Plug- in terminal 4.8×0.8mm
電氣參數和認證 Electric Rating and Certification
