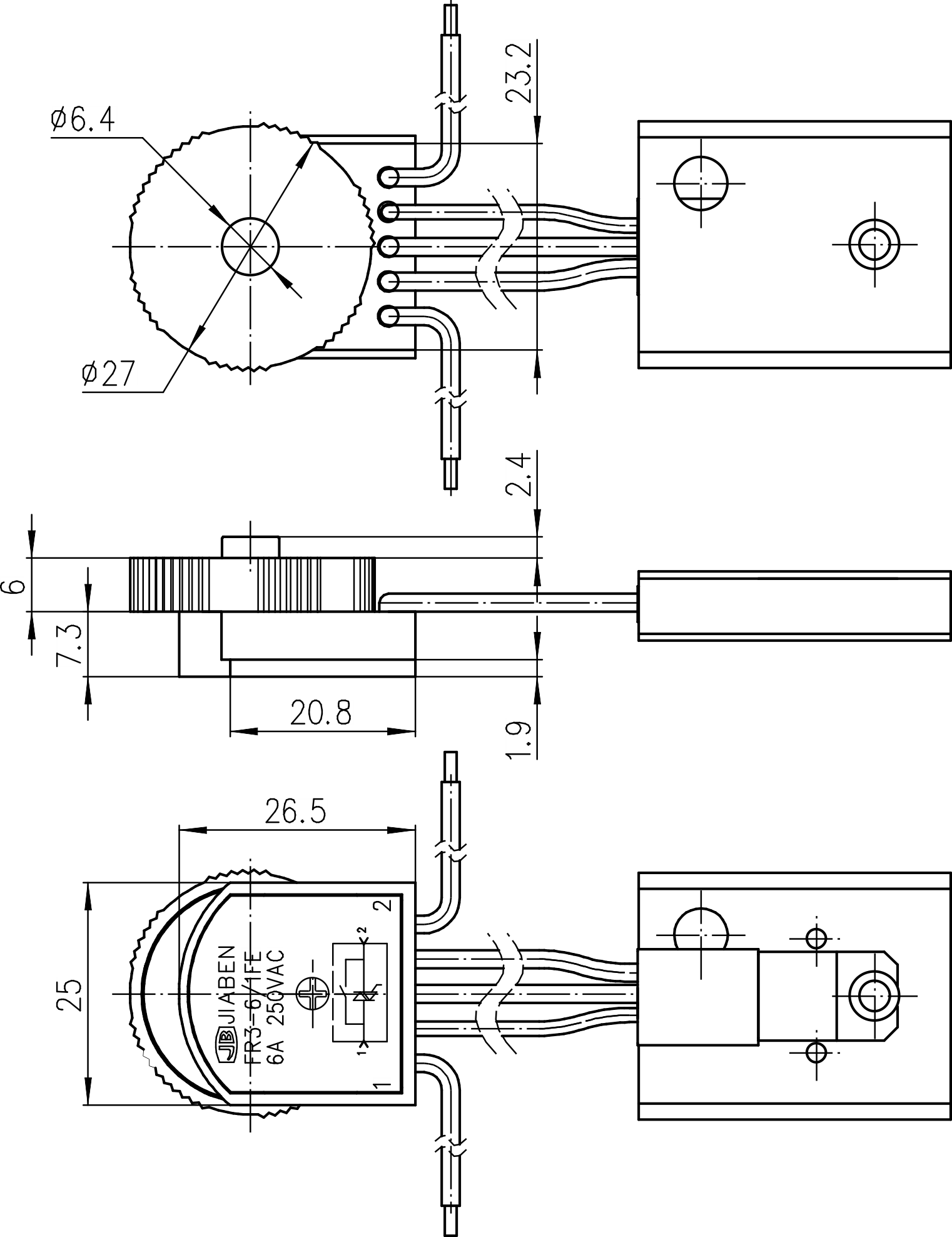

FR3-6E-2506E-A2-X(5-80)

FR3-6E防塵交流轉盤調速器

FR3-6E series Dustproof AC Dial Wheel Speed Controls

產品描述Product description

◆FR3-6E系列是一款通用型的轉盤電子調速器，集成防塵功能，應用于各類手持電動工具，如：電錘、曲線鋸、往復鋸、拋光機、電木銑、砂光機、攪拌器、100、125和150角向磨光機、模具電磨等。

◆FR3-6E series are one general type AC Dial Wheel Speed Controls, integrated dustproof, for popular used in portable power-tools such as: Rotary Hammers, Jig Saws, Reciprocating Saws, Polisher Grinders, Electric Routers, Sanders, Electric Mixer, 100~150mm Angle Grinders, Die Grinders, etc.

產品特征Features

◆可選帶以下功能 Optional with following function:

→全波調速 Full-wave speed control

→半波調速 Half-wave speed control

→On-Off通斷功能帶可變電阻輸出 On- off version with Passive linear potentiometer

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大電流 Max. current at 250V10A
→最大電流 Max. current at 125V16A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7MOhm
→基本介電強度 Dielectric strength of function500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→開關內部電子部分在相應使用中一并做過相關測試，本開關適合做二類器具開關使用.
→The electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class II.

端子類型Terminals

◆輸入端/輸出端 Input side/Output side:
→導線端子 Wires terminals AWG14 ~ AWG18

電氣參數和認證 Electric Rating and Certification

訂貨信息Ordering Information
