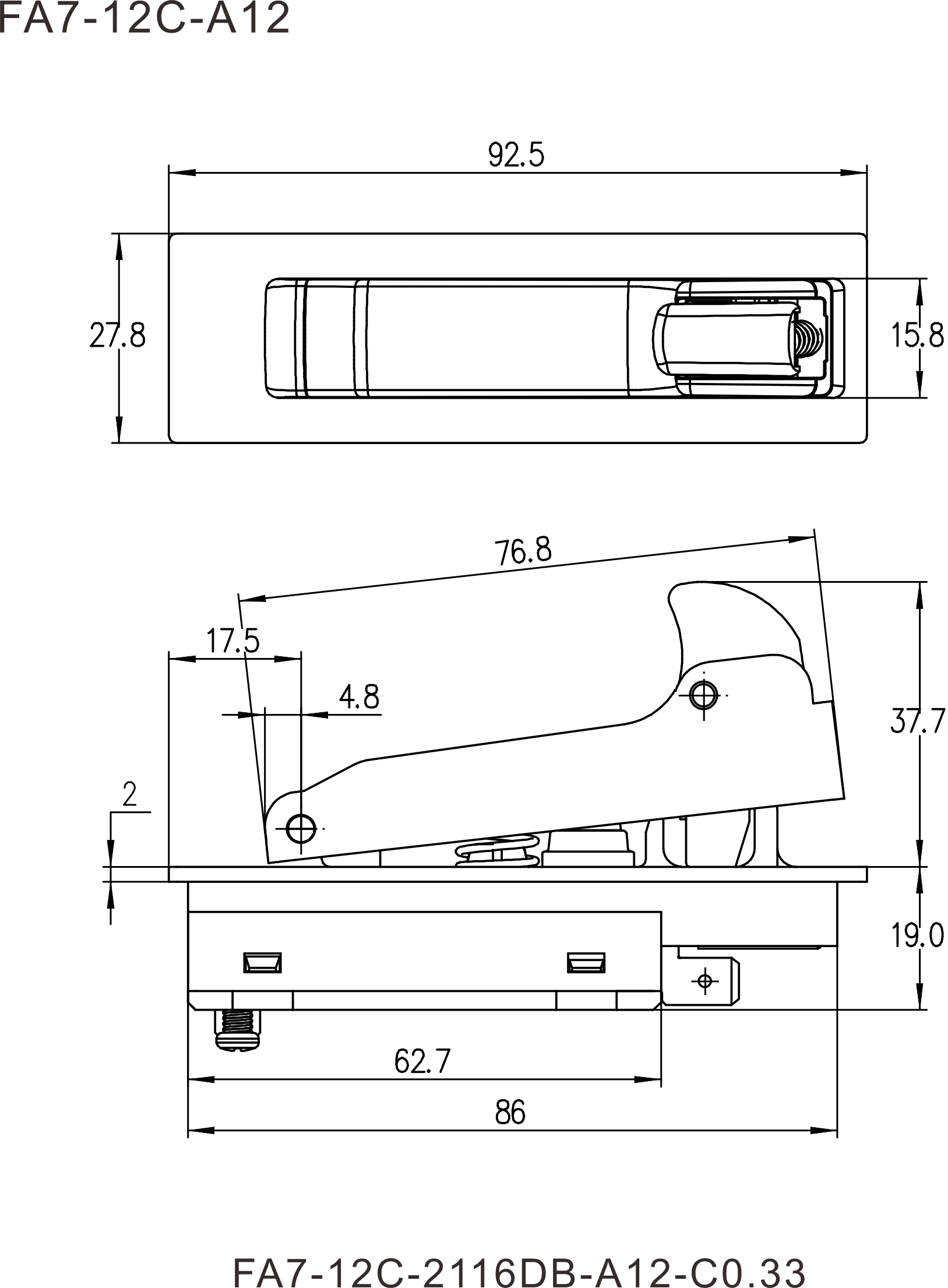

FA7-12C-A12

FA7-12C防塵快速動作扳機開關

FA7-12C series Dustproof Snap-action Trigger Switches

產品描述Product description

◆FA7-12C系列是一款專用型的大電流扳機開關,集成防塵功能,內部為快速動作結構,廣泛應用于各類的電動工具，如:型材切割機,斜切鋸(介鋁機), 125和150中角磨,電錘,電鎬等.有超過10種主體和扳機可供選擇,也可按照客戶要求定制.
◆FA7-12C series are special type high rated trigger switches,integrated dustproof, with snap-action structure, for use in high rated bench top or portable power-tools such as Cut-off Machines,Miter Saws， 125mm and 150mm Angle Grinders， Rotary Hammers, Demolition Hammers, etc. These switch has more than 10 body and trigger types for customer's choice, also accept customize according to customer's request.

產品特征Features

◆可選帶以下鎖定類型Optional with following lock types:
→無鎖Nolock
→閉合鎖定Lock-on
→斷開鎖定Lock-off
→斷開鎖定帶閉合鎖定Lock-off with lock-on
◆可選帶以下附件Optional with the accessories as follows:
→濾波電容(電容值由客戶選定, - -般為0.22μ F或0.33μ F)
Suppression capacitor (commonly 0.22or 0.33μF)

技術數據Technical data

→機械耐久壽命Mechanical life endurance≥1E5
→電氣耐久壽命Electrical life endurance≥5E4
→最大沖擊電流Max.Inrush current at 250V90A
→最大沖擊電流Max.Inrush current at 127V132A
→接觸電阻Contact resistance≤30m Ohm
→絕緣電阻Insulation resistance≥7M Ohm
→基本介電強度Dielectric strength of function1500V
→加強介電強度Dielectric strength of reinforced3000V
→環境溫度Ambient temperature0°C~55°C
→阻燃等級FlammabilityUL 94V-0
→防護等級Protection typeIP40
→適用于II類防護器具Suitable for appliances of protection class川

端子類型Terminals

◆輸入端Input side:
→2X接線柱端子/螺釘M4 Pillar terminals φ =4mm with M4 Screw
◆輸出端Outputside:
→2X插片端子Plug-in terminals 6.3X0.8mm
◆電容端子Terminals for Suppression capacitor:
→2X插片端子Plug-in terminals 2.8X 0.8mm
★本產品榮獲多項外觀和實用新型專利
★Appearances and Utility Models patented
