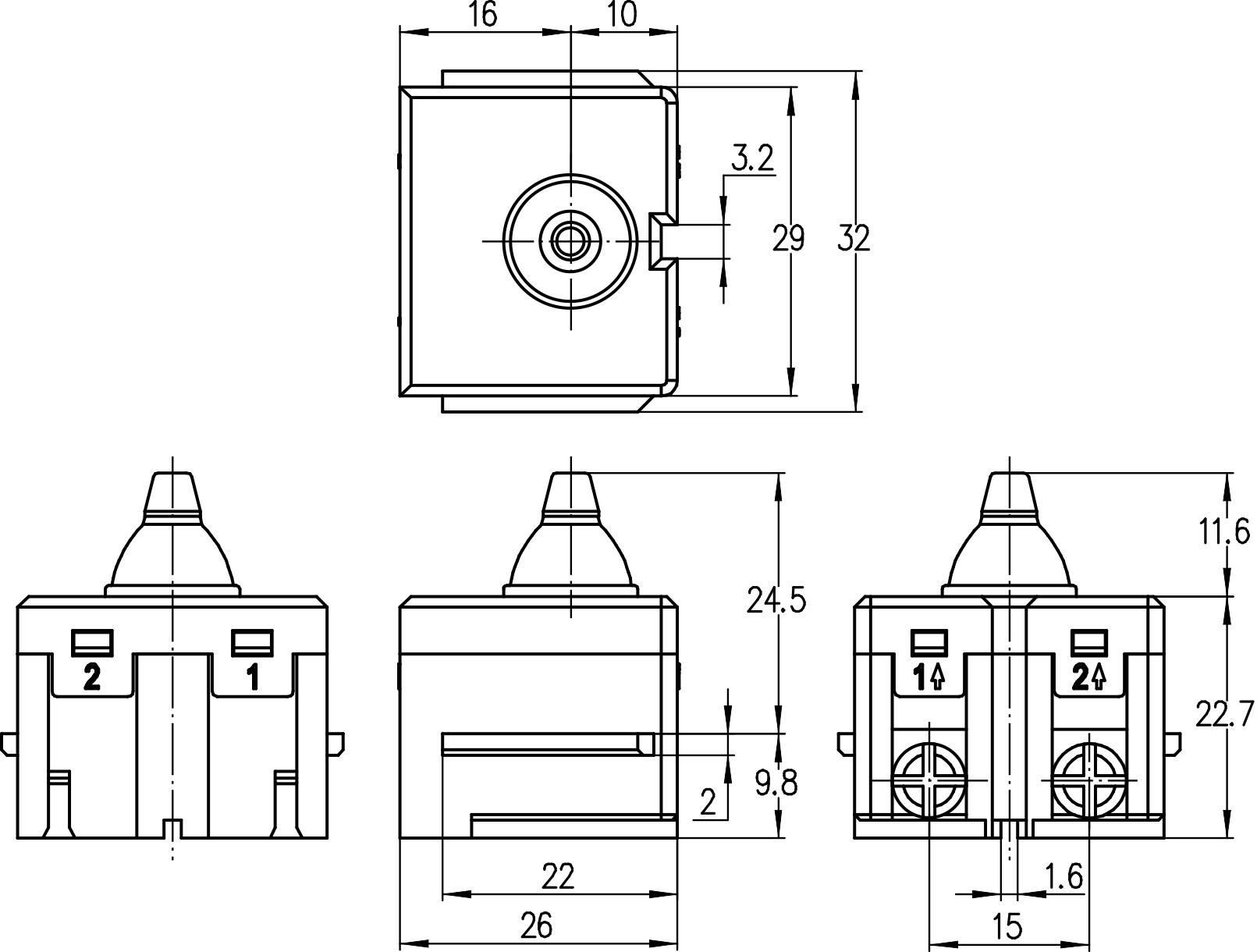

FA2-5DN-2115

FA2-5DN快速動作防塵按鈕開關

FA2-5DN Snap-action Dustproof Push-button Switches

產品描述Product description

◆FA2-5DN系列是一款專用型的按鈕開關，集成防塵功能，內部為快速動作結構，應用于各類手持式電動工具，如：125和150角向磨光機、拋光機等。
◆FA2-5DN series are special type Push-button switch, integrated dustproof, with snap-action structure, for used in portable power-tools such as 125mm and 150mm Angle Grinders, Polishers Grinders, etc.

產品特征Features

◆可選帶以下附件 Optional with the accessories as follows: .
→濾波電容(電容值由客戶選定，一般為0.22μF或0.33μF)
→Suppression capacitor (commonly 0.22or 0.33μF)

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→最大沖擊電流 Max. Inrush current at 127V90A
→最大電流 Max. current at 42Vd.c30A
→最大電流 Max. current at 24Vd.c40A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強 度Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP50
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端 Input side:
→螺釘端子 Screw terminals M3.5
◆輸出端 Output side:

→插片端子 Plug-in terminals 4.8×0.8mm

→焊接端子 Plug-in terminals 4.8×0.8mm

→電容插片端子 Plug-in terminals for capacitor 2.8×0.8mm
★本產品榮獲實用新型專利，專利號：ZL202020005964.6
★Utility Model patented with the no. is ZL202020005964.6
