產品描述Product description
◆FA7-6A系列是一款專用型的按鈕開關，集成防塵功能，內部為快速動作結構，應用于各類手持式電動工具，如：100和125角向磨光機、模具電磨、也可應用于電動園林工具、如：打草機、小型電鏈鋸等。
◆FA7-6A series are special type push-button switch, integrated dustproof, with snap-action structure, for used in portable power-tools such as 100mm and 125mm Angle Grinders, Die Grinders, etc. Also suitable for gardening tools, such as Grass Trimmers, small Electric Chain Saws, etc.
產品特征Features
◆可選帶以下附件 Optional with the accessories as follows:
→開關下蓋 Switch bottom Cover
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→最大沖擊電流 Max. Inrush current at 125V90A
→接觸電阻 Contact re sistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7MOhm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

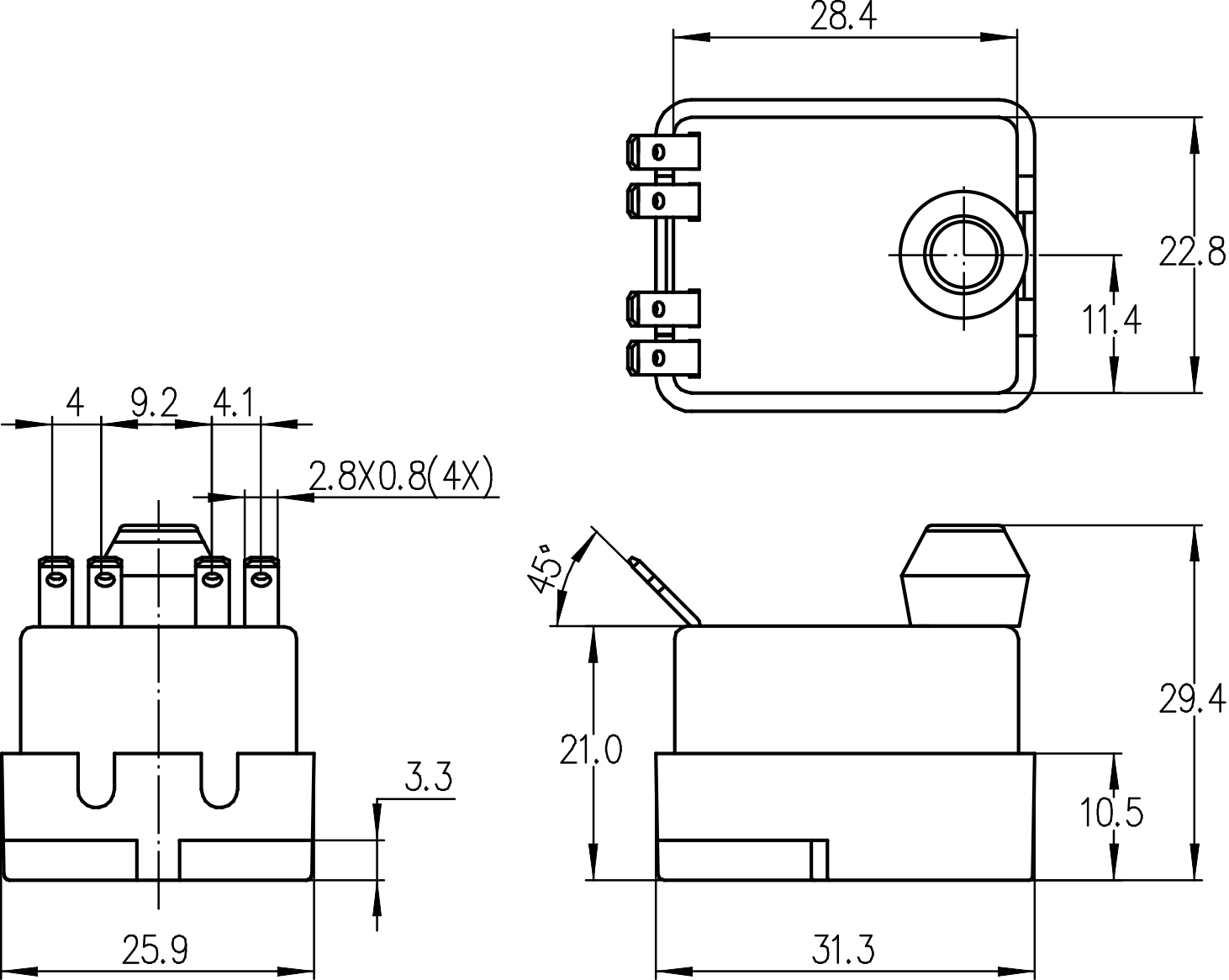

端子類型Terminals
◆輸入端 Input side:
→2×接線柱端子 Pillar terminals φ=2.8mm
◆輸出端 Output side:
→可選螺釘端子 Optional Screw terminals M3.5/M3.0
→可選接線柱端子 Optional Pillar terminals φ=2.8mm
→可選插片端子 Optional 2.8×0.8mm
電氣參數和認證 Electric Rating and Certification
