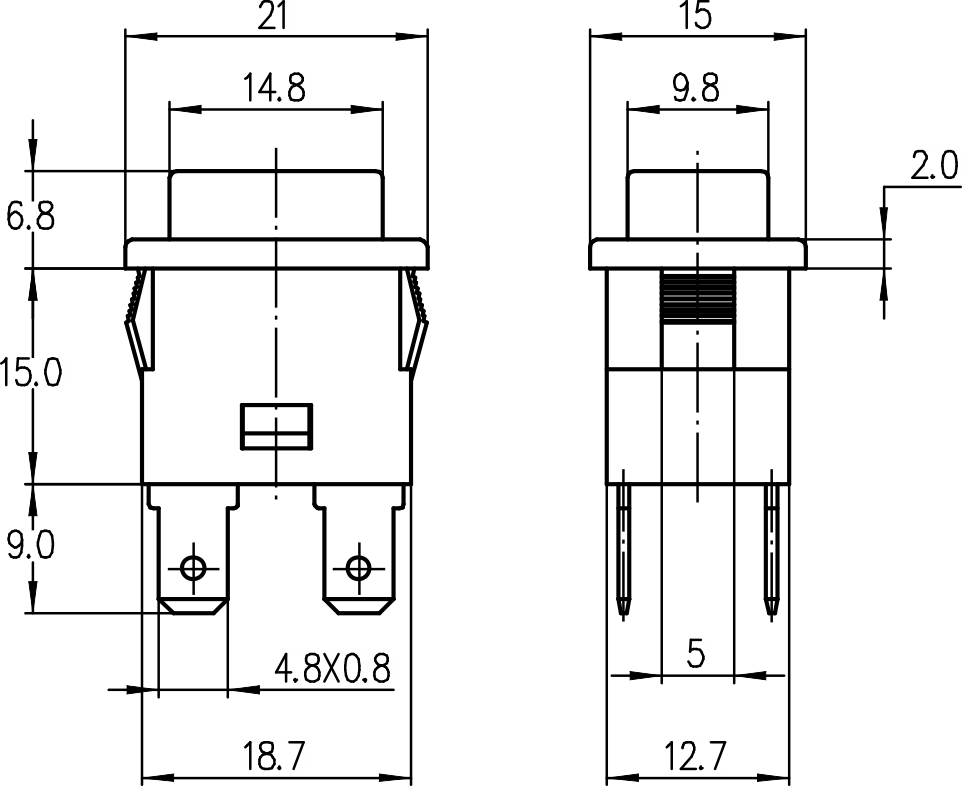

FA7-6H-2L10B

FA7-6H按鈕開關

FA7-6H series Push-button Switches

產品描述Product description

◆FA7-6H系列是一款專用型的按鈕開關，應用于各類家用電器和園林工具，如：真空吸塵器、充電燈、掛燙機、打草機等。
◆FA7-6H?series are special type push-button switch, commonly for used in home appliances or gardening tools such as Vacuum Cleaners, Chargeable Lights, Grass Trimmers, etc.

產品特征Features

◆可選帶以下功能 Optional with following function:
→單極常開 SPNO
→雙極常開 DPNO
→單極常開帶自鎖 SPNO with latching
→雙極常開帶自鎖 DPNO with latching
→帶防護罩→帶防護罩可實現防塵防水功能（和器具安裝后）
→Optional with Protection Cap for?dustproof?and?waterproof?(After installed with the appliances)

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V48A
→最大沖擊電流 Max. Inrush current at 125V48A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~105°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端/輸出端 Input side/Output side:
→插片端子 Plug-in terminals 6.3×0.8mm
→插片端子 Plug-in terminals 4.8×0.8mm
→焊接端子 Soldering terminals 3.0×0.8mm
→線路板焊接端子 PCB Soldering terminals 2×0.8mm
→線路板焊接端子 PCB Soldering terminals 1.1×0.8mm

電氣參數和認證 Electric Rating and Certification

訂貨信息Ordering Information
