產品描述Product description
◆FA7-6N系列是一款專用型的按鈕開關，內部為快速動作結構，應用于各類手持式電動工具，如：100和125角向磨光機、模具電磨，也可應用于電動園林工具，如：打草機、電鏈鋸、吹吸機等。
◆FA7-6N series are special type push-button switch, with snap-action structure, for used in portable power-tools such as 100mm and 125mm Angle Grinders, Die Grinders, etc. Also suitable for gardening tools, such as Grass Trimmers, Electric Chain Saws, Blowers, etc.
產品特征Features
◆可選帶以下功能 Optional with following function:
→雙極常開 DPNO (Double Pole Normally Open)
→雙極雙擲 DPDT (Double Pole Double Throw)
→雙極常閉 DPNC (Double Pole Normally Close)
→雙極常開并聯 DPNO Paralleled
→雙極雙擲并聯 DPDT Paralleled
→雙極常閉并聯 DPNC Paralleled
→帶防護罩可實現防塵功能?Optional with Protection Cap for dustproof
◆雙極并聯結構，內部為單一動觸頭，同步性好
◆Double Pole Paralleled, with one movable contact arm
◆兩極并聯后電氣參數最大可達25A 48Vd.c
◆Double Pole Paralleled, up to 25A 48Vd.c
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥5E4/ 1E5
→電氣耐久壽命 Electrical life endurance≥1E4/ 5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→最大沖擊電流 Max. Inrush currentat 125V90A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M? Ohm
→基本介電強度 Diele ctric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

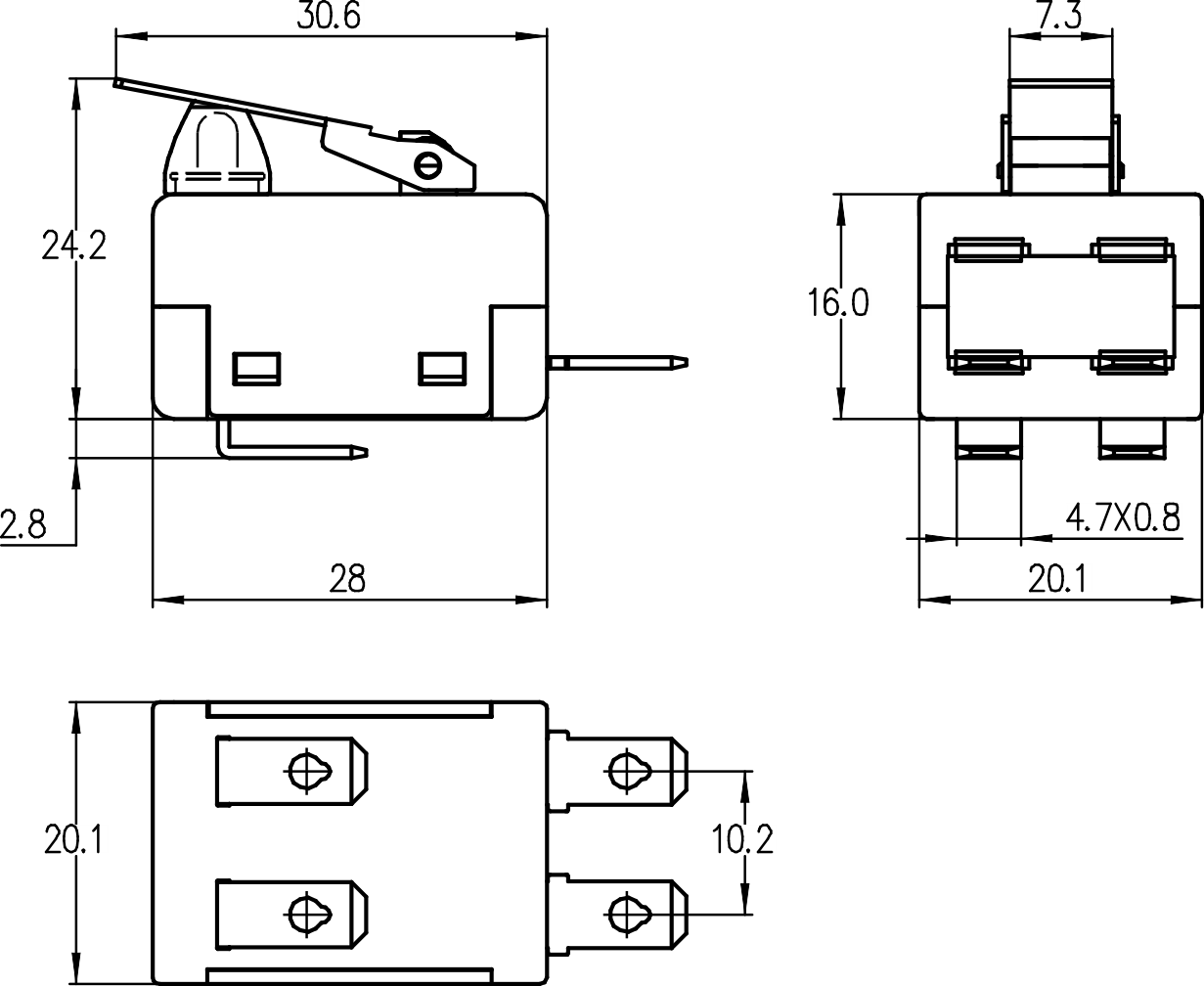

端子類型Terminals
◆輸入端/輸出端Input side/Output side:
→插片端子Plug-in terminal 4.7X0.8mm
→焊接端子Soldering terminal 4.7 X0.8mm
★本產品榮獲實用新型專利，專利號：ZL201920483842.5
★Utility Model patented with the no. is?ZL201920483842.5
電氣參數和認證 Electric Rating and Certification
