產品描述Product description
◆FDA系列是一款專用型的倒扳開關，也叫搖桿開關或撥動開關，集成防塵功能，應用于各類電動工具，如：100和125角向磨光機、電木銑、模具電磨、電錘、電鎬等。
◆FDA series are one special type Lever switches, integrated dustproof, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Routers, Die Grinders, Rotary Hammers,Demolition Hammers, etc.
產品特征Features
◆可選帶以下附件 Optional with following accessories:

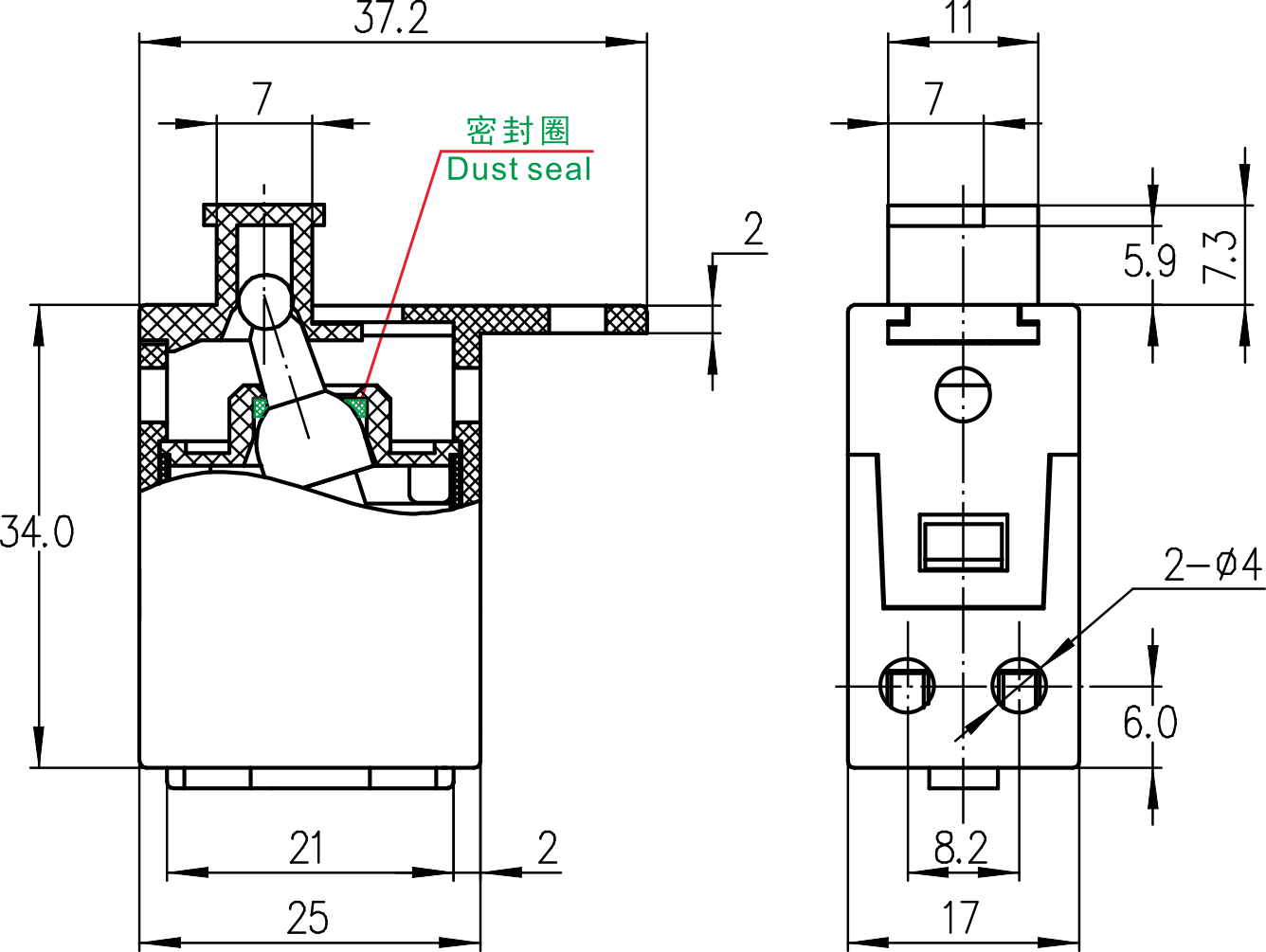

→防塵套 Dustproof sheath
→安裝螺母 Nut for installation
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命 Electrical life endurance≥5E4
→最大沖擊電流 Max. Inrush current at 250V60A
→最大沖擊電流 Max. Inrush current at 127V96A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II
端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→接線柱端子 Pillar terminals φ=3mm
電氣參數和認證 Electric Rating and Certification
