產品描述Product description
◆FD2F系列是一款通用型的滑動開關，也叫推拉開關或推撥開關，應用于各類需要自復位或正反轉控制的小型電器，如：電動螺絲刀、打草機、充電器等。
◆FD2F series are one general type slide switch, commonly for used in small appliances such as Electric Screwdrivers, Grass Trimmers, Charger, etc.
產品特征Features
◆可選帶以下功能 Optional with following function:
→雙極2檔位 Double Pole 2 Position (DP2P)
→雙極2檔位帶自復位 Double Pole 2 Position with momentary act (DP2PM)
→雙極3檔位 Double Pole 3 Position (DP3P)
技術數據Technical data
→機械耐久壽命 Mechanical life endurance≥5E4
→電氣耐久壽命 Electrical life endurance≥1E4
→最大電流 Max. current at 250V10A
→最大電流 Max. current at 125V16A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

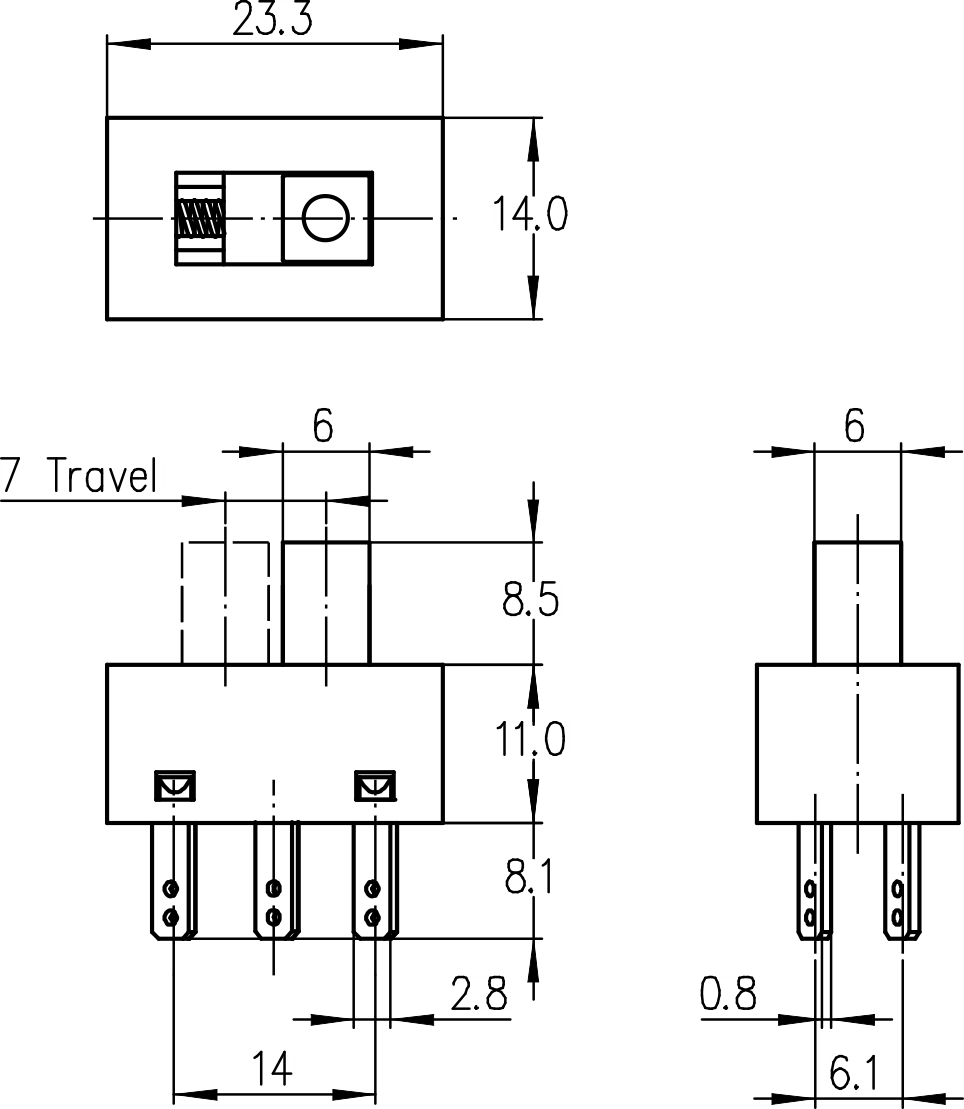

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→線路板焊接端子 PCB Soldering terminals 0. 8×0.8mm
→插片端子 Plug-in terminals 2.8×0.8mm
→焊接端子Soldering terminals 3.0×0.8mm
電氣參數和認證 Electric Rating and Certification
