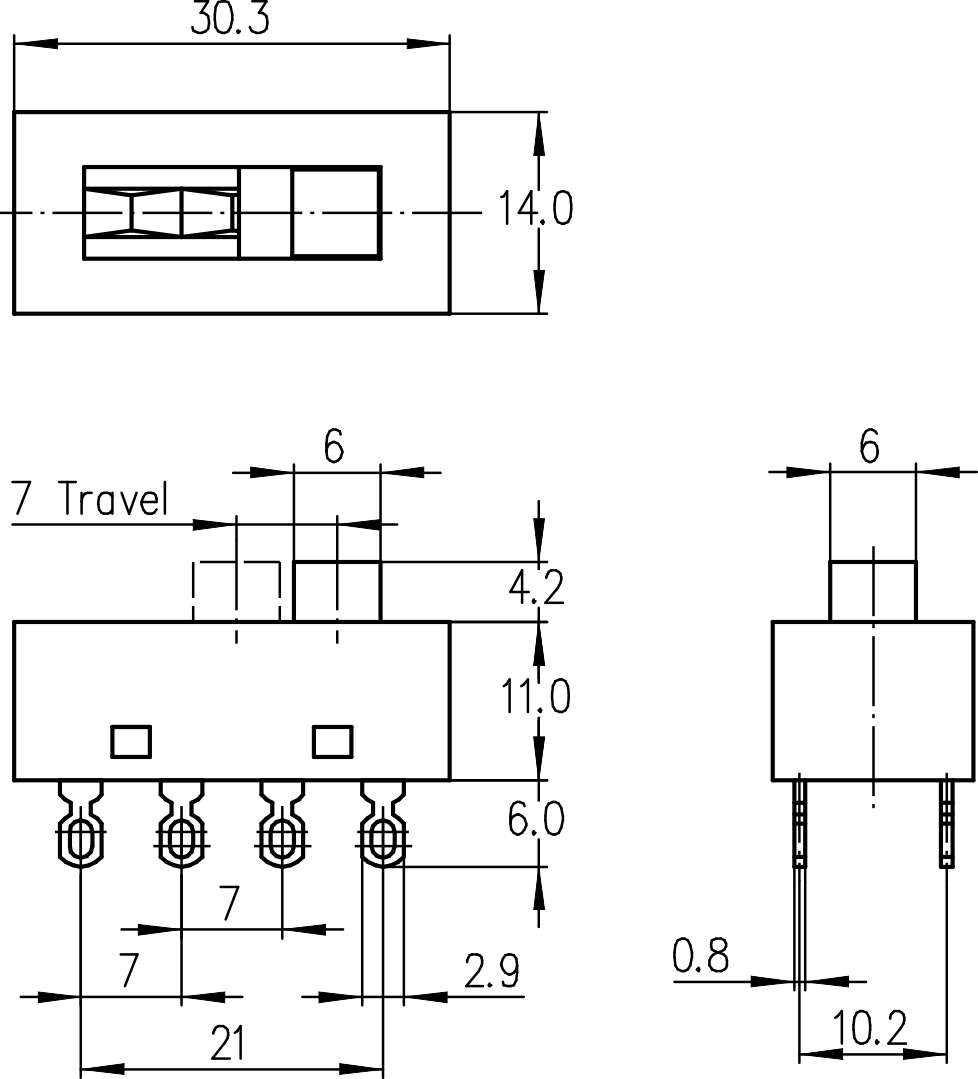

FD3F-2314-P1-T1

FD3F滑動(推拉)開關

FD3F series Slide (Push-pull) Switches

產品描述Product description

◆FD3F系列是一款通用型的滑動開關，也叫推拉開關或推撥開關，廣泛應用于各類需要檔位控制的電動工具和小家電，如：熱風槍、吹吸機、電吹風、電風扇、取暖器、料理機等。
◆FD3F series are general type slide switches, commonly for used in power-tools and small home appliances such as Heat Guns，Blowers， Hair Dryers， Electric Fans， Electric Heating Apparatus, Cooking Machines, etc.

產品特征Features

◆可選帶以下功能 Optional with following function:
→單極3檔位 Single Pole 3 Position (SP3P)
→雙極3檔位 Double Pole 3 Position (DP3P)

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥5E4
→電氣耐久壽命Electrical life endurance≥1E4
→最大電流 Max. current at 250V10A
→最大電流 Max. current at 125V16A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

◆輸入端/輸出端 Input side/Output side:
→線路板焊接端子 PCB Soldering terminals 0.8×0.8mm
→插片端子 Plug-in terminals 2.8×0.8mm
→焊接端子 Soldering terminals 2.8×0.8mm

電氣參數和認證 Electric Rating and Certification

訂貨信息Ordering Information
