產品描述Product description
◆FDP系列是一款通用型的滑動開關，也叫推拉開關或推撥開關，應用于各類手持電動工具，如：100和125角磨機、多功能工具等。
◆FDP series are general type slide switches, commonly for used in power-tools such as 100mm and 125mm Angle Grinders, Multi-function Tools, etc.
產品特征Features
◆可選帶以下功能 Optional with the following function:
→單極單擲 SPST (Single Pole Single Throw)
→單極雙擲 SPDT (Single Pole Double Throw)
◆內部為蹺板結構，使用壽命可達5萬次
◆With rocker structure, the endurance life can be 50,000 cycles
技術數(shù)據Technical data
→機械耐久壽命 Mechanical life endurance≥1E5/ 5E4
→電氣耐久壽命 Electrical life endurance≥5E4/1E4
→最大沖擊電流 Max. Inrush current at 250V48A
→最大沖擊電流 Max. Inrush current at 125V72A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function1500V
→加強介電強度 Dielectric strength of reinforced3000V
→環(huán)境溫度 Ambient temperature0°C~55°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

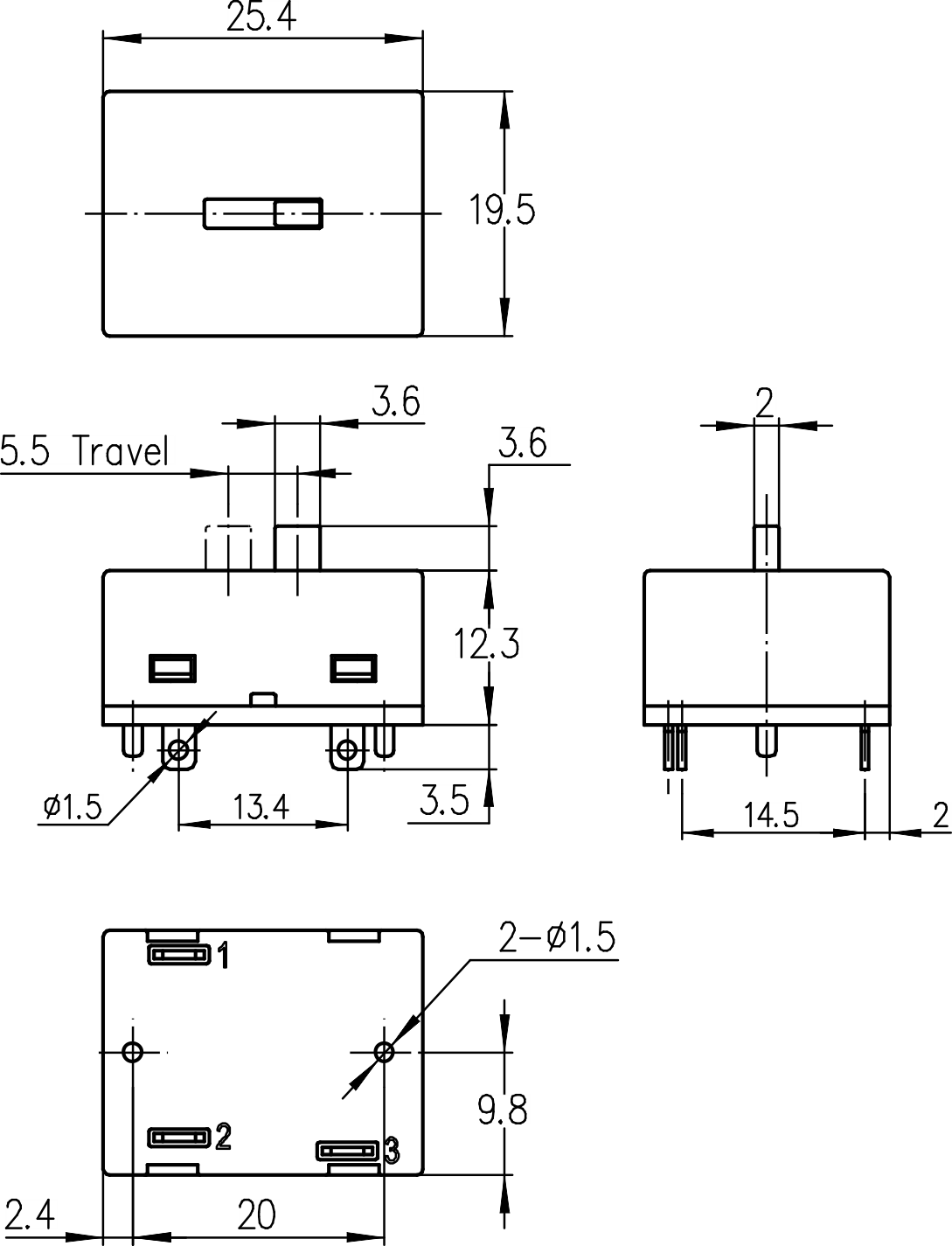

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→線路板焊接端子 PCB Soldering terminals 1.4×0.6mm
→焊接端子 Soldering terminals 2.6×0.6mm
→焊接端子 Soldering terminals 3.0×0.8mm
→插片端子 Plug-in terminals 4.8×0.8mm
電氣參數(shù)和認證 Electric Rating and Certification
