FDU-1104B

FDU滑動(推拉)開關

FDU series Slide (Push-pull) Switches

產品描述Product description

FDU系列是一款專用型的滑動并關,也可推拉并關或推撥并關,應用于汽油動力園林工具,如:汽油動力打草機、汽油動力吹吸機、汽油動力鏈鋸等。
FDU series are speciai typesiideswitches, commonly forusedin Power Gardening tools, such as Power Grass Trimmer, Power Blowers, Power Chain-saws, etc.

產品特征Features


可選帶以下功能 Optional with following function:

→單極單擲 Single Pole Single Throw

→單極單擲點動 Single Pole Single Throw with momentary act

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥5E4
→電氣耐久壽命 Electrical life endurance≥1E4
→最大沖擊電流 Max. Inrush current at 250V2A
→最大沖擊電流 Max. Inrush current at 125V4A
→接觸電阻 Contact resistance≤30m Ohm
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function500V
→加強介電強度 Dielectric strength of reinforced500V
→環境溫度 Ambient temperature0°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→防護等級 Protection typeIP40
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals


輸入端/輸出端 lnput side/Output side:

→插片端子 Plug terminals 6.3×0.8mm

→插片端子 Plug terminals 4.8×0.8mm

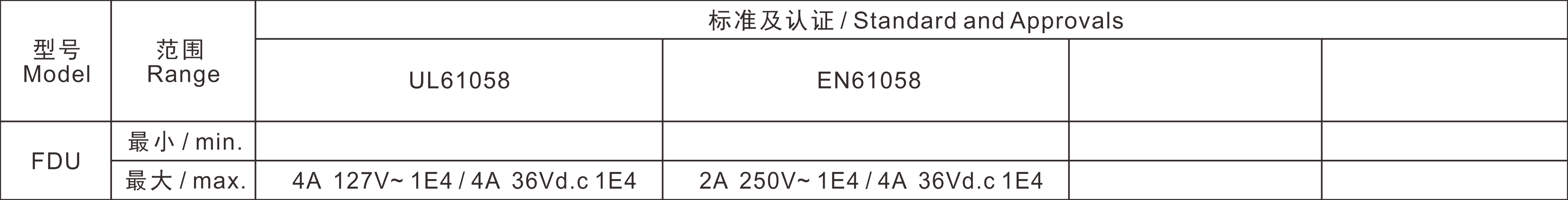

電氣參數和認證 Electric Rating and Certification
