FDW-1308

FDW滑動(推拉)開關

FDW series Slide (Push-pull) Switch

產品描述Product description

◆FDW系列是一款專用型的滑動開關，也可推拉并芙或推撥并關，應用于小電流的電動工具或家用電器上，如：直流充電電鉆、燙發器等。
◆FDW seriesarespeciai typesiidesWitches, commoniy forusedin Low current Power-tools or home appliances, such as DCCordless Drill, Hair iron, etc.

產品特征Features

◆可選帶以下功能 Optional with following function:

◆單極三檔位Single Pole 3 Position (SP3P)

技術數據Technical data

→機械耐久壽命 Mechanical life endurance≥1E5
→電氣耐久壽命E lectrical life endurance≥5E4
→最大電流 Max. current at 250V4A
→最大電流 Max. current at 127V8A
→接觸電阻 Contact resistance30m Ohm
→絕緣電阻 lnsulation resistance7M Ohm
→基本介電強度 Dielectric strength of function500V
→環境溫度 Ambient temperature-25℃~125℃
→阻燃等級 FlammabilityUL94V-0
→適用于II類防護器具 Suitable for appliances of protection class II

端子類型Terminals

輸入端/輸出端 Input sidel/Output side:
→線路板端子 PCB soldering terminals 1.0×0.6mm

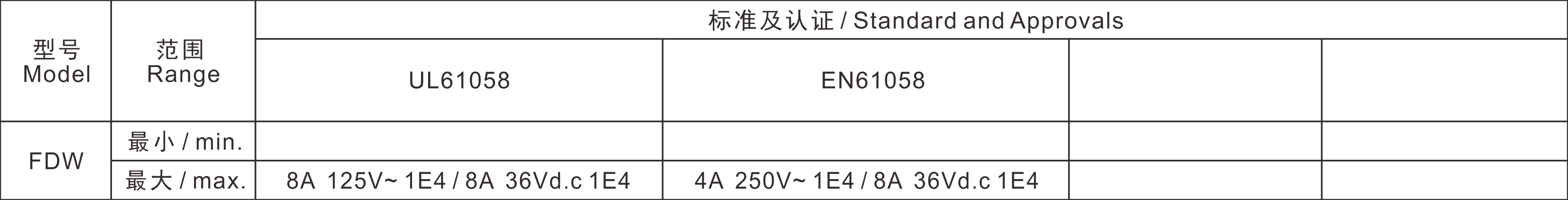

電氣參數和認證 Electric Rating and Certification
